VOILA Led Architectural Facade Light

Viola is exactly the redefinition of architectural facade luminaire according to led era.

Reference Code NIX-820-VOI-01

Description

Viola is exactly the redefinition of architectural facade luminaire according to led era. It is designed with excellent engineering and equipped with adaptable features to all possible scenarios that come up during application process. Viola is powerful enough to emphasize and elaborate the facades through light for long years under any occasion.

High quality PC diffuser is perfectly durable against shocks whereas its anodized coated aluminium body removes the risk of corrosion.One of the considerable properties of Viola is that the driver module is positioned outside the body and protected privately. By this way Viola finds a solution to evaporation issue that appears in time on the diffuser.

The evaporation reduces the lumen power of luminaire. You keep having the same amount of lumen throughout service life as the amount you maintain first day.

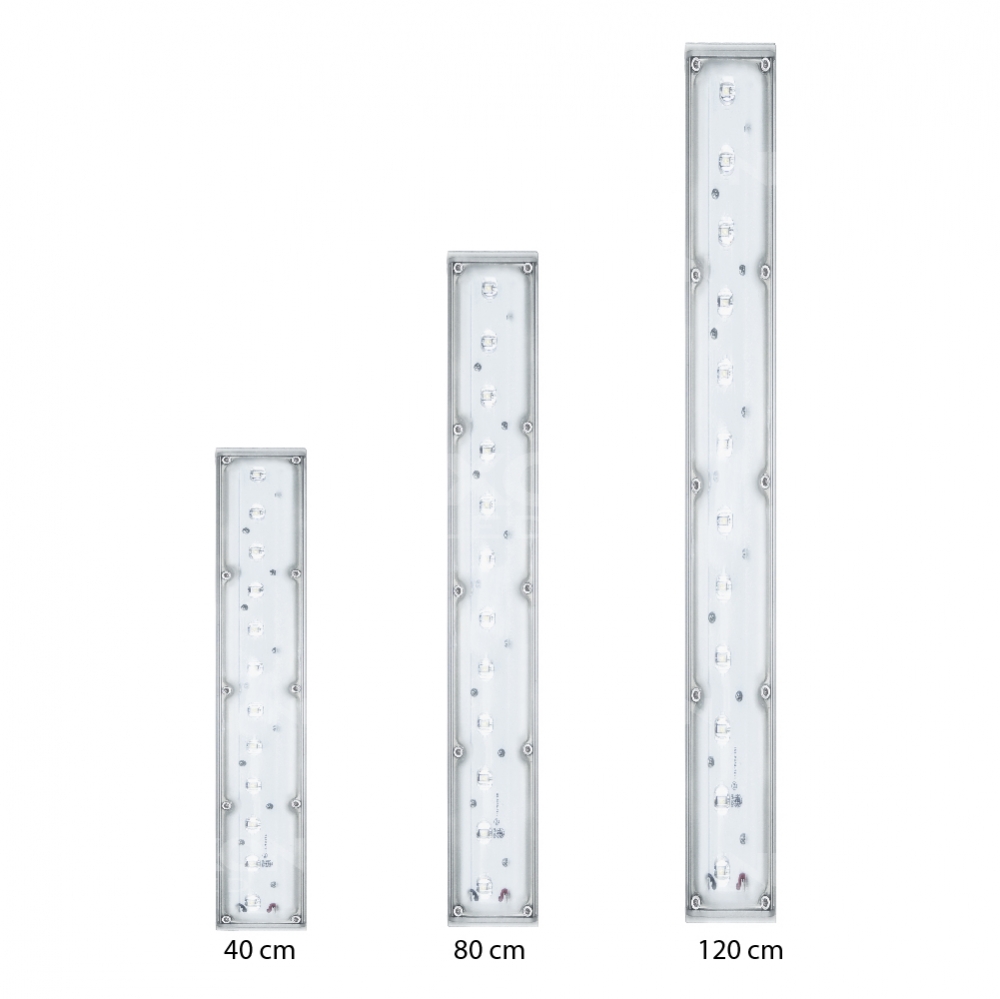

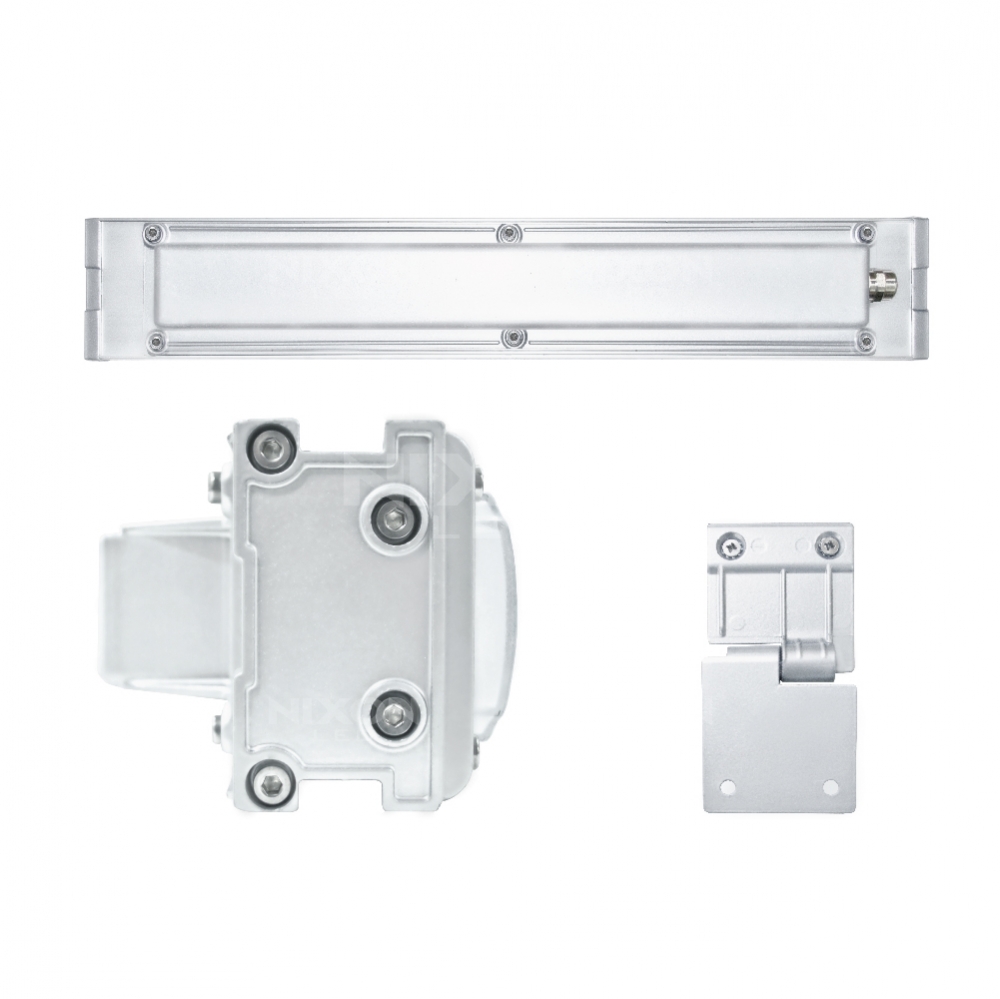

Viola is manufactured as modules of 40, 80 and 120 cm. It offers a wide range of options in terms of space utilization and focalization needs via the mounting kit that simplifies the angled installation.

Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.

Die casting aluminum housing, with anti-static and anti-corrosion coating.

Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.

Beautiful appearance, several types of installation methods available.

Privo can be manufactured with diffuser options offering 3D effects as well.

Lightweight design

Structure for easy installation

Long life up to over 50,000 hours

Features

Body Alüminyum

Color Beyaz

Diffusor / Glass PC

Power(W) 20 watt

Lumen(lm) 1865 lm

Kelvin(K) 2700-6500 k

CRI(Ra) 80

Ingress Protection(IP) 67

Product Dimensions(mm) 416 X 78 X 68 mm

Package Dimensions(mm) 0 X 0 X 0 mm

Package QTY(pcs) 0

Weight(kg)> 1.1 kg

Request Info

Technical Table & Product Versions

Reference Code	Description	Power(W)	Lumen(lm)	Kelvin(K)	Product Dimensions(mm)	Package Dimensions(mm)	Weight(kg)
NIX-820-VOI-01	VOILA Led Architectural Facade Light	20	1865	2700-6500	416 X 78 X 68	0 X 0 X 0	1.1
NIX-820-VOI-02	VOILA Led Architectural Facade Light	40	3730	2700-6500	832 X 78 X 68	0 X 0 X 0	1.1
NIX-820-VOI-03	VOILA Led Architectural Facade Light	60	5595	2700-6500	1248 X 78 X 68	0 X 0 X 0	1.1

VOILA Led Architectural Facade Light

Viola is exactly the redefinition of architectural facade luminaire according to led era.

Technical Table & Product Versions
